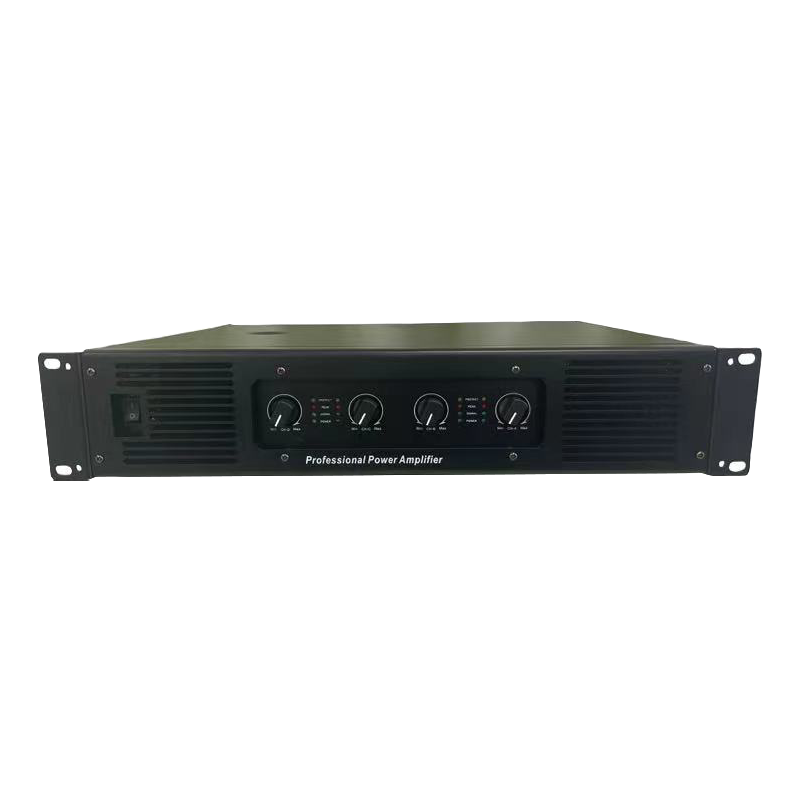

4 Channel 600W professional power amplifier for foot massage club

Channel no.

4

4

Rated output power

Stereo power 8Ω

600W

400W-1000W

Stereo power 4Ω

900W

600W-1500W

Rated bridged output power 8Ω

1800W

1200W-3000W

Power supply

AC 220-240V 50Hz/60Hz  (100V-125V can be customized)

Total harmony distoration(THD)

<0.025%

Frequency response

20Hz-20KHz,±0.5dB

Signal to noise

>112dB

Slew rate

>100V/us

Damping factor

>1500:1

IMD

<0.05%

Input sensitivity(*40/32dB)

0.775V/1.4V(32dB)

Input impedance

20k ohms balance/10k ohms unbalance

Input CMRR

>80dB

Crosstalk

>80dB

Input link

One balance XLR interface per channel

Output link

One 4-POLESpeakon interface per channel and a pair of plum blossom anti-touch binding posts

Protection

Full-featured protection circuit, including temperature (overheating), short circuit, DC, voltage limit, overload, overcurrent, distortion limiter, undervoltage/overvoltage, on/off noise, load mismatch (low resistance), soft-start on boot, Power-on anti-surge, radio interference, secondary wave, high-frequency output automatic detection (UHF) protection and other protections

LED indicator

Protection (PEA), Signal (SIG), Overheating (TEM), Bridge (BRI), Stereo (STE), Mono (PAR)

Cooling system

By the air convection mechanism from the front to the rear, the internal air is forced to dissipate heat, and the automatic continuously variable speed dual fans are forced to cool

Output circuit type

Class H

Voltage gain 0.775V/0dB

*100

ODM & OEM

Max power consuption

2300VA/10.2A

ODM & OEM

Weight

18kg

ODM & OEM

Dimensions(L*D*H)

480*465*88mm

Remark:Above standard parameters are just for your reference,we can design by your requirements.
