Performance Designed Sealing Toroidal Transformers with Copper Winding

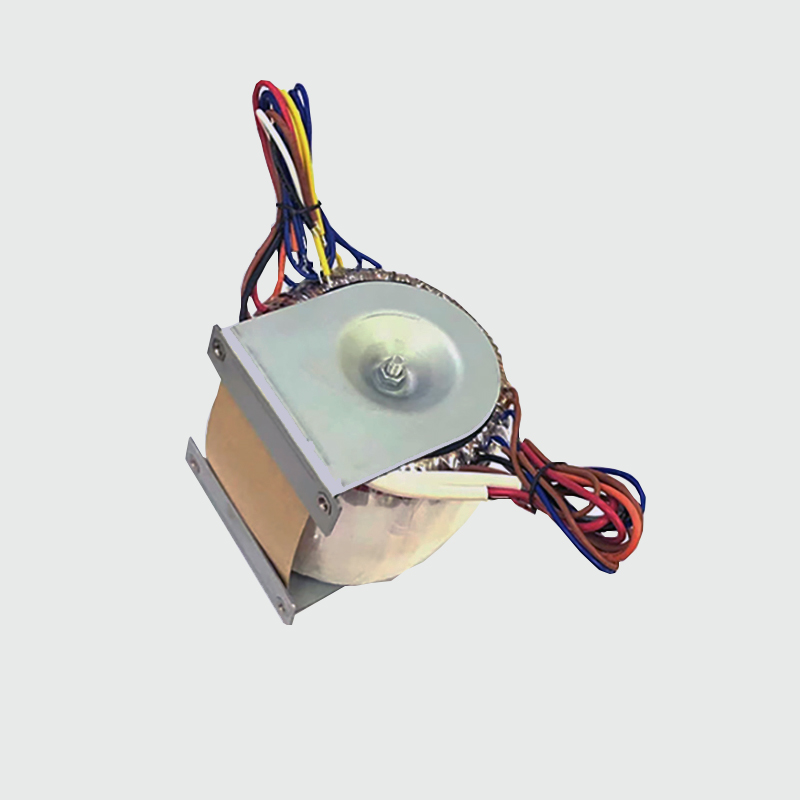

transformer with pad mounted.jpg

Toroildal transformers are popular made from 25va to 5000va capacity,they havebeen widely used in audio power amplifier,household application,voltage regulator,solar inverter,medical equipment,voltage stabilizer,UPS ,atomizing humidifier,industrical device and other
electronic instrument as well.

Specification

Item	Model	Rated Power	Voltage Regulation (%)	Effciency(%)	Weight (KG)	Dimension(mm)
Item	Model	Rated Power	Voltage Regulation (%)	Effciency(%)	Weight (KG)	Height	Diameter
1	HB25	25VA	20	73	0.4	25	68
2	HB30	30VA	16.5	76.6	0.5	25	72
3	HB40	40VA	15.8	80.2	0.6	33	79
4	HB50	50VA	15.2	82.4	0.7	33	84
5	HB63	63VA	13.8	83.5	0.8	34	89
6	HB80	80VA	12.6	84.7	1	34	95
7	HB100	100VA	11.2	86.5	1.3	35	105
8	HB105	105VA	10.8	86.8	1.4	35	109
9	HB125	125VA	9.6	87.3	1.6	40	110
10	HB150	150VA	7.2	88.1	2	42	116
11	HB160	160VA	6.6	88.6	2.1	42	118
12	HB200	200VA	6.1	89.7	2.4	48	120
13	HB250	250VA	5.5	90.3	2.9	50	127
14	HB300	300VA	5.2	91.7	3.2	55	128
15	HB400	400VA	4.6	93.8	4.7	70	133
16	HB500	500VA	4.3	94.6	5.5	72	140
17	HB630	630VA	4.1	95	6.7	72	155
18	HB800	800VA	3.8	95.1	8.2	72	170
19	HB1000	1000VA	3.3	95.8	10	78	180
20	HB1250	1250VA	2.9	96.2	12.3	80	198
21	HB1600	1600VA	2.8	96.6	14.8	86	210
22	HB2000	2000VA	2.5	96.9	16.9	90	232
23	HB2500	2500VA	2.3	97.3	18.8	100	245
24	HB3000	3000VA	2.1	97.7	21.3	110	255
25	HB5000	5000VA	1.9	98.1	23.8	120	270
Remark:Above standard parameters of general transformer are just for your reference,we can design by your requirements.

Appliance
transformer application 80.jpg

Advantages of toroid core transformer

Main production process of toroidal transformer

Corner of our company

Sunhyor is a comprehensive company integrating production, sales and research and development of toroidal transformers.
OEM and ODB are supported.
Performance Designed Sealing Toroidal Transformers with Copper Winding

Two normal assembly methodes

Packing & Delivery

please contact us for the most suitable carrier for you.

FAQ

1.Q:Can I get a sample before placing trial order?
A:Sure,you can.Please contact our sales representative for more details.

2.Q:What's your delivery time?
A:It depends on your order quantity.
Normally,for samples,it takes about 5-7 days;for mass production,it takes about 25-30 days after receiving your deposit.

3.Q:What's your price terms?
A:EXW,FOB,CFR,CIF etc are available.

4.Q:What about your payment terms?
A:TT 30% deposit in advance and balance 70% will be paid off before delivery.

5.Q:Is it support to print my logo on the label?
A:No problems,we can make it as per your requirements.
