Professional Toroidal Transformer for Stepper Motor

Order online

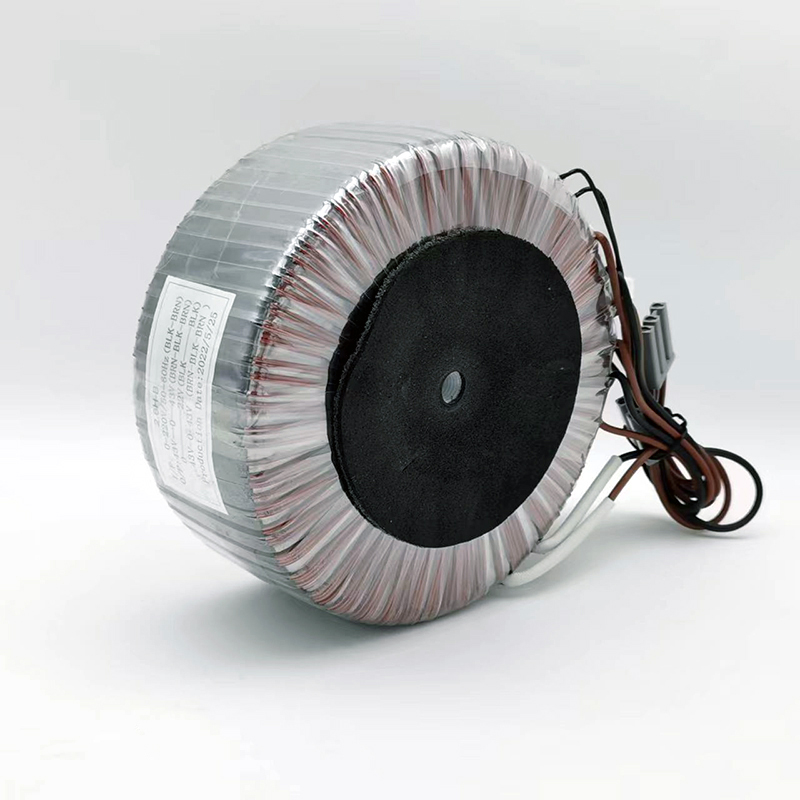

Professional Toroidal Transformer for Stepper Motor

electronic transformer.jpg

The iron core of the toroidal transformer is made of high-quality cold-rolled silicon steel sheets seamlessly rolled, and the coil is evenly wound on the iron core, so that the direction of the magnetic field lines generated by the coil almost completely coincides with the magnetic circuit of the iron core, compared with the laminated transformer. The excitation energy and core loss of the toroidal transformer can be reduced by 25% to 40%. The iron core of the toroidal transformer is wound by silicon steel tape, and has a continuous magnetic circuit, while there is an air gap between the E-piece and the I-piece of the laminated transformer, and there is a large air gap reluctance. main disadvantage. The toroidal core has no air gaps and is processed using vacuum impregnation technology, which makes the core a solid unit, reducing vibration and audible noise.

Specification

Item	Model	Rated Power	Voltage Regulation (%)	Effciency(%)	Weight (KG)	Dimension(mm)
Item	Model	Rated Power	Voltage Regulation (%)	Effciency(%)	Weight (KG)	Height	Diameter
1	HB25	25VA	20	73	0.4	25	68
2	HB30	30VA	16.5	76.6	0.5	25	72
3	HB40	40VA	15.8	80.2	0.6	33	79
4	HB50	50VA	15.2	82.4	0.7	33	84
5	HB63	63VA	13.8	83.5	0.8	34	89
6	HB80	80VA	12.6	84.7	1	34	95
7	HB100	100VA	11.2	86.5	1.3	35	105
8	HB105	105VA	10.8	86.8	1.4	35	109
9	HB125	125VA	9.6	87.3	1.6	40	110
10	HB150	150VA	7.2	88.1	2	42	116
11	HB160	160VA	6.6	88.6	2.1	42	118
12	HB200	200VA	6.1	89.7	2.4	48	120
13	HB250	250VA	5.5	90.3	2.9	50	127
14	HB300	300VA	5.2	91.7	3.2	55	128
15	HB400	400VA	4.6	93.8	4.7	70	133
16	HB500	500VA	4.3	94.6	5.5	72	140
17	HB630	630VA	4.1	95	6.7	72	155
18	HB800	800VA	3.8	95.1	8.2	72	170
19	HB1000	1000VA	3.3	95.8	10	78	180
20	HB1250	1250VA	2.9	96.2	12.3	80	198
21	HB1600	1600VA	2.8	96.6	14.8	86	210
22	HB2000	2000VA	2.5	96.9	16.9	90	232
23	HB2500	2500VA	2.3	97.3	18.8	100	245
24	HB3000	3000VA	2.1	97.7	21.3	110	255
25	HB5000	5000VA	1.9	98.1	23.8	120	270
Remark:Above standard parameters of general transformer are just for your reference,we can design by your requirements.

Appliance

AC 220V to 43V 22V Toroidal Transformer for Audio Analog Amplifier

Advantagess of toroid core transformer

Production process control of toroidal transformer

1.Each process has corresponding work instructions.
2.Before mass production, the first article confirmation must be finalized and signed by the head of the design department and the quality management department.
3.During the mass production process, IPQC conducts real-time monitoring. If any quality problems are encountered in each process, the quality management team will be immediately organized to analyze the causes of the defects.And make improvement plans with the fastest time.
4.100% inspection of all properties in the production process, such as: no-load current, interlayer insulation, short-time loading test, high voltage test, etc.
5.The test instruments are complete, and all instruments are regularly sent to calibration institutions for calibration. Such as touch current tester, power supply, withstand voltage tester and so on.
6.After the product is finished, the quality management department will conduct random inspection. The packaging department conducts a full inspection of the appearance of the product during packaging. (Appearance inspection includes: finished product size, wire arrangement order, PVC lead wire length, terminals, and whether the appearance is damaged).
7.Packaging and put them in the warehouse.

Corner of our company

Sunhyor is a comprehensive company integrating production, sales and research and development of toroidal transformers.
OEM and ODB are supported.
