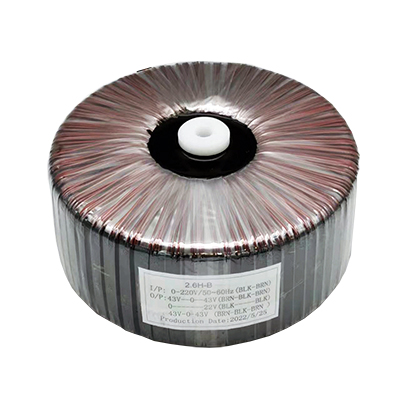

AC Input DC Output Toroidal Transformer with 25va to 5000va

Features of toroidal transformer

1. Product parameters: as a core part in various appliance equipment,it not only can change AC voltage,but also can change the impedance and current.Surely we can design the parameters by your market demands.
2. High-quality pure copper coil: using high-quality all-copper coil, excellent electrical conductivity, low resistivity, low temperature rise, comprehensively improve the quality, reliability and efficiency of the product.
3. Double insulation: double-layer polyester film wrapped copper wire, safe isolation, strong insulation.
4. High-quality iron core: double-layer polyester film wrapped copper wire, safe isolation, strong insulation.

5. Power blessing: careful first materials, professional technology, ensure high quality products, sufficient power, prevent electric shock, safe and reliable.

Appliance of high power transformers

Why choose us?

Specification of toroidal transformer for your reference

Item	Model	Rated Power	Voltage Regulation (%)	Effciency(%)	Weight (KG)	Dimension(mm)
Item	Model	Rated Power	Voltage Regulation (%)	Effciency(%)	Weight (KG)	Height	Diameter
1	HB25	25VA	20	73	0.4	25	68
2	HB30	30VA	16.5	76.6	0.5	25	72
3	HB40	40VA	15.8	80.2	0.6	33	79
4	HB50	50VA	15.2	82.4	0.7	33	84
5	HB63	63VA	13.8	83.5	0.8	34	89
6	HB80	80VA	12.6	84.7	1	34	95
7	HB100	100VA	11.2	86.5	1.3	35	105
8	HB105	105VA	10.8	86.8	1.4	35	109
9	HB125	125VA	9.6	87.3	1.6	40	110
10	HB150	150VA	7.2	88.1	2	42	116
11	HB160	160VA	6.6	88.6	2.1	42	118
12	HB200	200VA	6.1	89.7	2.4	48	120
13	HB250	250VA	5.5	90.3	2.9	50	127
14	HB300	300VA	5.2	91.7	3.2	55	128
15	HB400	400VA	4.6	93.8	4.7	70	133
16	HB500	500VA	4.3	94.6	5.5	72	140
17	HB630	630VA	4.1	95	6.7	72	155
18	HB800	800VA	3.8	95.1	8.2	72	170
19	HB1000	1000VA	3.3	95.8	10	78	180
20	HB1250	1250VA	2.9	96.2	12.3	80	198
21	HB1600	1600VA	2.8	96.6	14.8	86	210
22	HB2000	2000VA	2.5	96.9	16.9	90	232
23	HB2500	2500VA	2.3	97.3	18.8	100	245
24	HB3000	3000VA	2.1	97.7	21.3	110	255
25	HB5000	5000VA	1.9	98.1	23.8	120	270

transformer installation.jpg
